CONSTRUCTION EQUIPMENT

CONSTRUCTION EQUIPMENT


HYDRAULIC PUMP

CENTRALINA TESATIRANTI TIPO C4E

TECHNICAL SPECIFICATION HYDRAULIC PUMP C4E

Engine power:
Energy voltage:
Weight (oil included):
Oil qty:
Pumping rate:
Max pressure:
Radial manometer:
2.2 kW
220 V / 380 V
53 kg
10 L
2.5 L/min
500 bar
0-600 bar


SALE AND RENTAL

CENTRALINA TESATIRANTI TIPO C10

TECHNICAL SPECS OF C10 CONTROL UNIT

Engine power:
Energy voltage:
Weight (oil included):
Oil qty:
Pumping rate:
Max pressure:
Radial manometer:
2.2 kW
380 V
101 kg
35 L
4.5 L/min a 70 bar, 1.8 L/min a 700 bar
700 bar
0-600 bar


SALE AND RENTAL

CENTRALINA TESATIRANTI TIPO D10

TECHNICAL SPECS OF D10 CONTROL UNIT

Engine power:
Energy voltage:
Weight (oil included):
Oil qty:
Pumping rate:
Max pressure:
Radial manometer:
4,0 kW
380 V
130 kg
60 L
4 L/min
700 bar
0-1000 bar


SALE AND RENTAL

SCREW JACKS

MARTINETTO TESATIRANTI TIPO T22

TECHNICAL SPECS OF T22 SCREW JACK

Area of tensioning piston:
Max Pull capacity:
Max exercise pressure:
Standard jaws available:
Stroke:
Pipes lenght:
Weight:
44.15 cm2
~215 kN
~450 bar
0.5”-0.6”-0.62”
200 mm o 350 mm
3.00 m
24 kg


SALE AND RENTAL

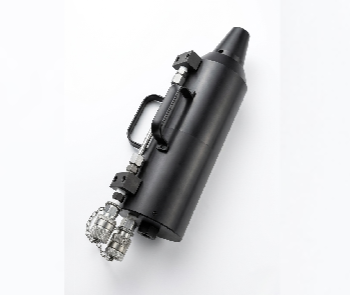

MARTINETTO TESATIRANTI TIPO T24

TECHNICAL SPECS OF T24 SCREW JACK

Area of tensioning piston:
Max Pull capacity:
Max exercise pressure:
Standard jaws available:
Stroke:
Pipes lenght:
Weight:
47.20 cm2
~235 kN
~520 bar
0.5”-0.6”-0.62”
200 mm o 350 mm
3.00 m
25 kg


SALE AND RENTAL

MARTINETTO TESATIRANTI TIPO CT 870KN

TECHNICAL SPECS OF CT 870KN SCREW JACK

Area of tensioning piston:
Max Pull capacity:
Max exercise pressure:
Standard jaws available:
Stroke:
Pipes lenght:
Weight:
35 cm2
870 kN
~600 bar
0.5”-0.6”-0.62”
200 mm
5.00 m
115 kg


SALE AND RENTAL

MARTINETTO TESATIRANTI TIPO CT 1600KN

TECHNICAL SPECS OF CT 1600KN SCREW JACK

Area of tensioning piston:
Max Pull capacity:
Max exercise pressure:
Standard jaws available:
Stroke:
Pipes lenght:
Weight:
247.3 cm2
1600 kN
~600 bar
0.5”-0.6”-0.62”
200 mm
5.00 m
185 kg


SALE AND RENTAL

MARTINETTO TESATIRANTI TIPO CT 2520KN

TECHNICAL SPECS OF CT 2520KN SCREW JACK

Area of tensioning piston:
Max Pull capacity:
Max exercise pressure:
Standard jaws available:
Stroke:
Pipes lenght:
Weight:
388.50 cm2
2520 kN
~600 bar
0.5”-0.6”-0.62”
200 mm
5.00 m
315 kg


SALE AND RENTAL

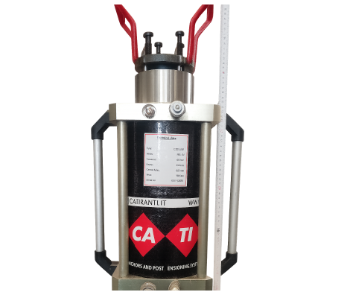

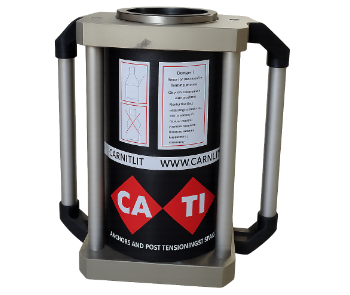

DATI TECNICI MARTINETTO TESATIRANTI IN CARBONIO

TECHNICAL SPECS OF THE SCREW JACK IN CARBON

Area of tensioning piston:
Max Pull capacity:
Max exercise pressure:
Standard jaws available:
Stroke:
Pipes lenght:
Weight:
da 118.8 a 396.5 cm2
da 800 a 2775 kN
~600 bar
0.5”-0.6”-0.62”
da 150 a 200 mm
5.00 m
da 25 a 80 kg


SALE AND RENTAL

TOOLS FOR SCREW JACKS

TOOLS PER MARTINETTI CAVI

TOOLS FOR SCREW JACKS

In addition to the sale and rental of our screw jacks, we supply stringing and release tools applicable to any standard or customized model of screw jack.

SALE AND RENTAL

MARTINETTO TESATIRANTI TIPO T22

PULLING JAWS

We have simple, chrome-plated, or ceramic-coated pulling jaws for different applications: Release kit for jacks, pulling jaws for 0.5 ”/0.5” S / 0.6 ”/0.6” strand, reuse jaws for prestressing.

INJECTION SYSTEMS

POMPE DI INIEZIONE

INJECTION PUMPS

Injection pumps are specific machines for the injection of cement mixtures and meet the needs on-site where injections are required. The machines available vary in both size and power.

SALE AND RENTAL

POMPE JET GROUTING

JET GROUTING PUMPS

We also rent jet grouting pumps, designed and manufactured for high-pressure fluid injections into the ground. A full range of connected accessories is also available.

SALE AND RENTAL

DRILLING MACHINERY

MACCHINE DI PERFORAZIONE

DRILLING MACHINES

We rent different drilling machines for anchors micro piles, and jet groutings, such as the models Casagrande C6 Xp2 and Comacchio MC15.

SALE AND RENTAL

DRILLING TOOLS

TOOLS DI PERFORAZIONE

DRILLING TOOLS

We offer different drilling tools, such as drilling bits, crowns, rods, hole hammers, concentric and eccentric overburden, casing, auger/propellers, triple blades, and tricones.

SALE AND RENTAL
